Hot-DIP Galvanized Wind and Rain Resistant Poultry House Equipment with Integrated Nipple Drinker Line

Brand Name : KXD

Model Number : KXD-SS7

Certification : CE、ISO、SGS

Place of Origin : Qingdao，China

MOQ : 500 sqm

Price : USD 68-100 per sqm

Payment Terms : L/C,T/T

Supply Ability : 500000 tons/month

Delivery Time : 25 days

Packaging Details : steel pallet

Type : prefabricated industrial warehouse

Steel Type : Hot-Rolled Steel; Welded Steel

Surface Treatment : Painting or Hot-DIP Galvanized

Weatherresistance : Wind and Rain Resistant

Contact Now

Optimal Poultry House Equipment With Factory Price High Quality Better Using Exceed 10 years
Optimal Poultry House Equipment With Factory Price High Quality Better Using Exceed 10 years
Floor Type Automatic Poultry Farm Equipment Battery Cage Automatic Poultry Farm Equipment
Silo main feed line Silo main feed line
Pan feeding line system Cage system with integrated nipple drinker line, pan feeder line or feed trough
Nipple drinking line system Ventilation system
Ventilation system Evaporative cooling pad system
Evaporative cooling pad system Climate & power control system
Climate & power control system Fogger spraying & disinfection system
Fogger spraying & disinfection system Heater
Heater Lighting system
Lighting system Curtain system for both side walls (open-type poultry houses)
Curtain system for both side walls (open-type poultry houses)
Optional slatted floor system (upon customer request)
1. Main Feeding Line System

Function: This system conveys feed from the feed silo or manual hopper to the hopper of each feeding line.

Feeding Source Options:
  • Option 1: Feed Silo
  • Option 2: Manual Hopper
Drive Motor Specifications:
  • Power: 0.75 kW
  • Voltage: 380 V
  • Frequency: 50 Hz
  • Power Supply: Three-phase AC
Hot-DIP Galvanized Wind and Rain Resistant Poultry House Equipment with Integrated Nipple Drinker Line
2. Automatic Pan Feeding Line System

Product Description: The automatic pan feeding system consists of a drive unit, hopper, conveying pipe, auger, suspension lifting device, anti-perching device, and feed sensor.

Main Components & Specifications:
High-quality Special Drive Reduction Motor
  • Power: 0.75 kW
  • Voltage: 380 V
  • Frequency: 50 Hz
  • Power Supply: Three-phase AC
V-shaped Hopper
  • Bin Volume: 115 L
  • Hopper Volume: 38 L
  • Material: Hot-dip galvanized sheet
Feeding Pipe
  • Conveying Pipe Diameter: Φ45 mm
  • Material: Hot-dip galvanized steel pipe
Feeding Pan
  • Material: New PP material
  • Available in more than 6 types of feeder pans
Hot-DIP Galvanized Wind and Rain Resistant Poultry House Equipment with Integrated Nipple Drinker Line
3. Automatic Nipple Drinking System
Function

This system delivers clean, fresh water to broiler chickens steadily. Water is dispensed automatically when birds touch the nipples.

Specifications
Water Line Front System

This unit controls the water supply. Its main functions are to adjust water supply pressure and stabilize drinking volume. It is typically installed in the control room.

Pressure Regulator
  • Stable regulation and reliable switching performance
  • Ensures sufficient and equal water supply to all nipples
  • Recoil cleaning function for effective cleaning, saving time and water
  • High-quality movable valve for easy replacement
Nipple Drinker Lines (Options)
  • Plasson type nipple drinking system
  • Big Herdsman type nipple drinking system
  • Lubing type nipple drinking system
Hot-DIP Galvanized Wind and Rain Resistant Poultry House Equipment with Integrated Nipple Drinker Line
5. Cooling Pad System
  • Dimensions: Length × Width × Thickness: Customizable
  • Frame Materials: Galvanized Steel, Aluminium Alloy, Stainless Steel
  • Colors: Brown, Brown & Green, Green, Black
Hot-DIP Galvanized Wind and Rain Resistant Poultry House Equipment with Integrated Nipple Drinker Line

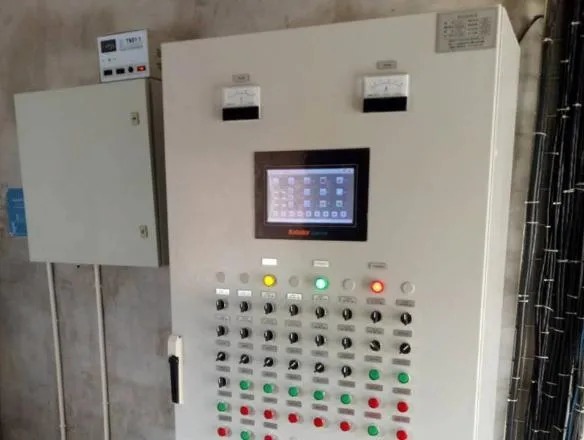

6. Environment Control System
Function

The system can set suitable mode according to different stage birds raising requirements for temperature and humidity, through control of ventilation fans, cooling pads, heaters, and air inlets to achieve automatic control of chicken farm equipment.

Components
  • Environment controller
  • New design control box
  • Chick scale system and silo weighing system
Hot-DIP Galvanized Wind and Rain Resistant Poultry House Equipment with Integrated Nipple Drinker Line
7. Heating System

Special designing of heat preservation to ensure the lowest heat loss. Heat efficiency amounts to 80%-90%, warming up fast, small volume, easy setting, high reliability, low price.

Optional Heaters:
  • Gas space heater
  • Gas brooder
  • Diesel/Coal heater
  • Electric heater
Hot-DIP Galvanized Wind and Rain Resistant Poultry House Equipment with Integrated Nipple Drinker Line
